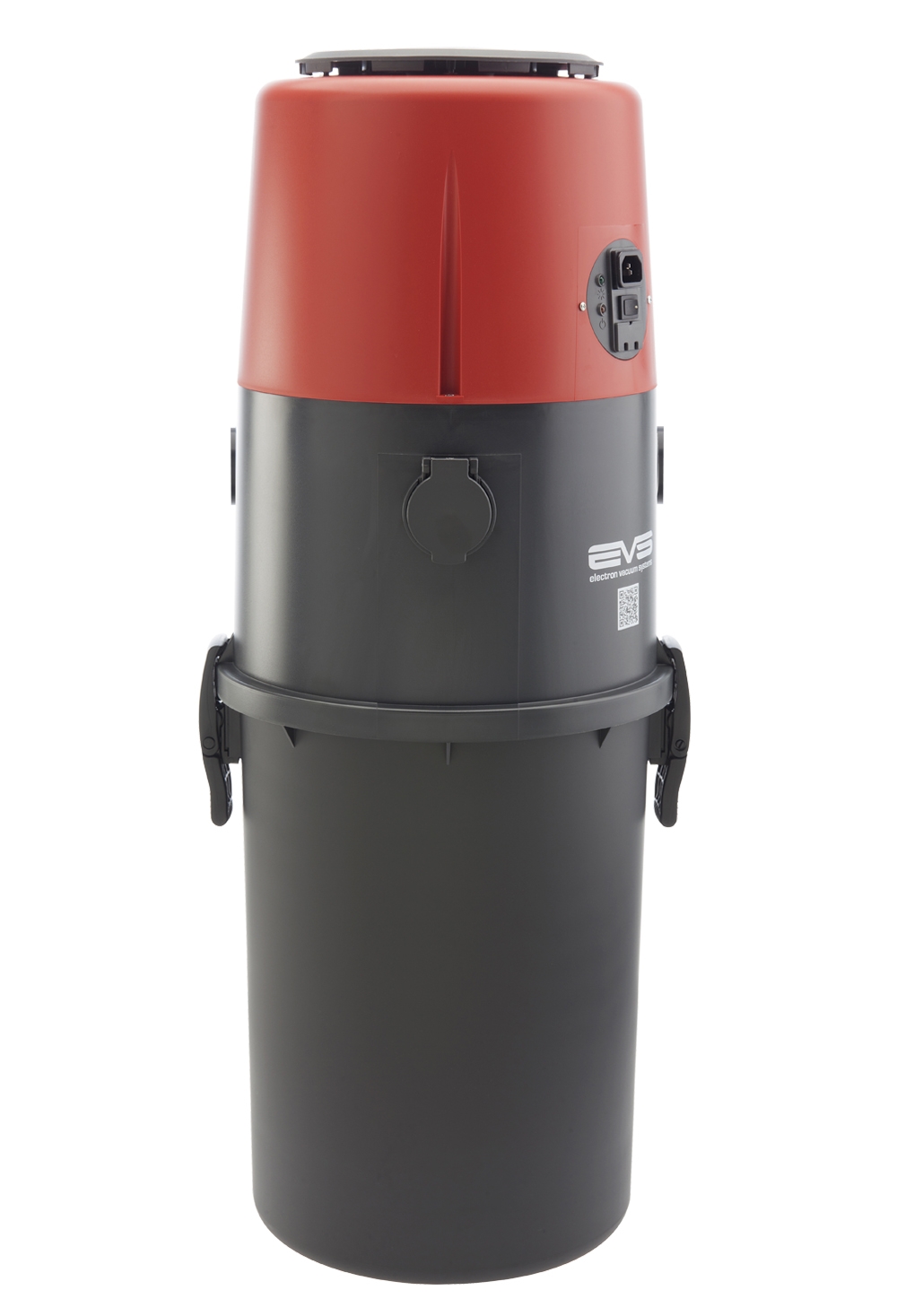

Electron EVS Ducted Vacuum Cleaner System Model 2707
Model 2707
Vacuum Motor Specifications
Tangential By-pass discharge
Flow Through discharge
Double ball bearings
Diameter of Motor mm 145
Air Watts
Airflow l/s (max.) 54
Sealed Vacuum mm H2O (max.) 3250
RPM @19mm working orifice 23600
Label Rated Electrical Watts 1700
Noise Level dbA with Silencer @ 3m 73.0
Temperature Sensitive Thermal Protector
Control Circuit 12 V DC
Control Current 100mA
Nominal Voltage 240 V AC
Nominal Frequency 50 Hertz
Power Unit Physical Specifications
Overall Height (mm) 810
Overall Diameter (mm) 310
Overall Weight (kg) 7.4
Dual Filtration Compatible System
Cyclonic Filtration (Standard)
HFPC Filter Cartridge
Filter Bag Filtration (Optional with Bag Adaptor Kit)
Silencer for Exhaust
Left & Right ducting entry points
Direct Inlet point with On/Off switch
Wall Mounting of Power Unit
Body Housing Construction ABS
Dirt Capacity litres 25
Authority Approvals / Origin
“C” Tick Compliance EMC – AS/NZS 1044
Complies to AS/NZS 60335.2.2
Made in Australia
Installation Recommendations *
Size of Building up to Squares 70
Number of Inlet Points 10
Number of Aux Points 5
Working Hose length – up to metres 15
Max distance to furthest point metres
Hide-A-Hose Compatible
Notes:-
* Installation Recommendations shown is only an approximate guide and may vary to actual construction specifications and layout of building. Please consult with your installer for appropriate model.
Specifications subject to change without notice. EOR
